MixTrack Platinum FX, field manual

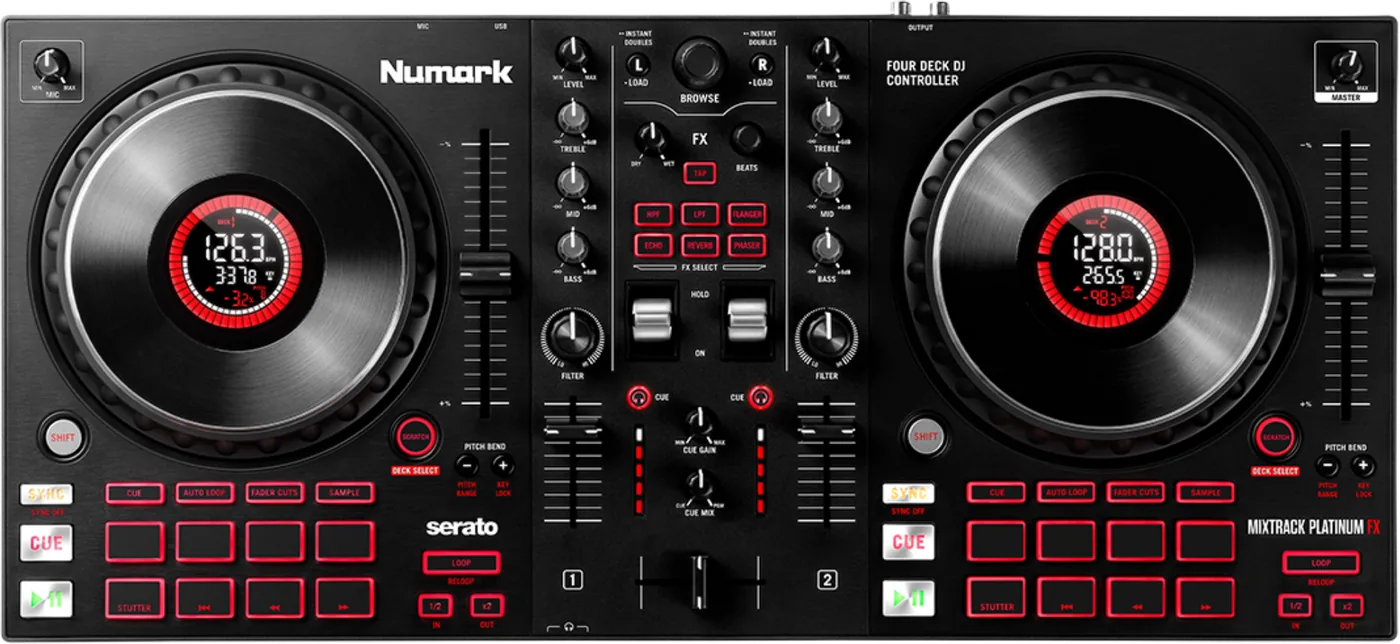

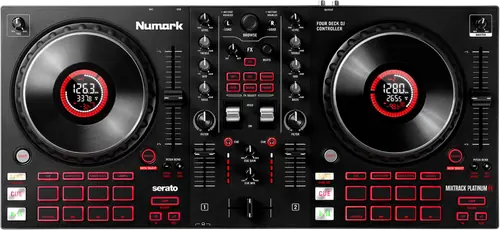

Numark MixTrack Platinum FX two channel Serato DJ Lite controller, top view with two jog wheel displays

Booth briefing. The MixTrack Platinum FX is a two-channel controller in Numark's MixTrack line for Serato DJ Lite on a laptop, announced in 2020 together with the MixTrack Pro FX. The two models share one guide and nearly every control, including a three-position FX toggle on each deck. The Platinum FX adds a display in each jog wheel, showing BPM, pitch and time among other readings, and uses Shift plus Scratch to move a deck to a second software layer, so four decks are within reach.

Fast Lane

MixTrack Platinum FX: equipment profile

A USB powered controller with a screen in each jog wheel, running Serato DJ Lite.

Software
Serato DJ Lite in the box. Audio path 44.1 kHz at 24-bit.
Without a computer
The microphone only, routed into the mix by the hardware. Everything else is MIDI.
What comes out
RCA stereo master pair. Headphones on quarter-inch and 3.5 mm jacks. Microphone on quarter-inch TS. No XLR, no booth.
Power
USB bus power, 5 V. No adaptor listed and no DC inlet.
What the computer needs
One USB port, class compliant, 44.1 kHz at 24-bit.
Dimensions and weight
53.6 cm wide, 24.6 deep, 5.1 tall (21.1 × 9.7 × 2 in). 2.4 kg / 5.3 lb.
Released
2020

MixTrack Platinum FX User Guide v1.2 and its Technical Specifications table.

The five things that decide your gig

The MixTrack Platinum FX in five points, each linked to its section.

Master Gain down does not silence the microphone. Only Mic Gain does.

Dropping the master will not kill a hot mic.

The microphone path, and the knob that owns it

On the FX toggle, down is on. Only the middle position is off.

Centre it when you are done with it.

The FX toggle and the position that is off

Tap BPM four times and the software stops using the analysed BPM.

Tapping to check a tempo is not harmless.

Tap BPM, and what four presses change

A pad mode gives you four pads, not eight. The bottom row never changes.

Search Backward and Search Forward sit under your hand at all times.

The pads, and the row that is fixed

One output goes to a PA, and the table counts your headphones as two more.

Count one PA output, not three.

What comes out, and what the table counts

Official equipment video

Note: This feature requires an internet connection.

What to watch for

There is no firmware section, and an update exists anyway

The MixTrack Platinum FX does have firmware. Numark publish firmware for this model as installers, without release notes.

Numark publish a support knowledge base with per model articles. The NS7 II, the NS7 III, the SCRATCH and the Mixstream family have articles of their own.

Compatibility

The software: Serato DJ Lite

Serato DJ Lite, installed with the card in the box.

So the MixTrack Platinum FX guide is not the document to plan a software setup from. Take the download card out of the box before the gig rather than on the day.

Which Serato you actually get, and what the upgrade costs you

Serato state this controller unlocks Serato DJ Lite for free when it is plugged in, with a paid upgrade to Serato DJ Pro and a free trial. Recording and extra cues and loops are among what the upgrade adds.

The jog wheel displays do not change that. The Platinum FX and the Pro FX sit in the same Serato tier, and the difference between them is hardware rather than software entitlement.

Does it work without a computer?

The MixTrack Platinum FX needs the computer. No standalone mode: it works with the software, and it is bus powered from the computer.

The guide documents one microphone input, one unbalanced RCA output pair, and no operating mode other than the one with the software running.

Features explained

The FX toggle, and the only position that is off

On the FX toggle, down turns the effects on. Numark describe up as latching the effects on, down as turning them on momentarily, and only the middle position as off. A toggle resting anywhere but the centre is doing something.

Two of the three positions on the MixTrack Platinum FX are doing something, and the difference between them is whether the effect stays on when you let go. Up latches, down is momentary, and the centre is the only rest position.

Tap BPM, and the four presses that replace the analysed tempo

Tap BPM is not a nudge. Numark state that pressing it four or more times makes the software ignore the track BPM and follow the manually entered tempo instead, and the guide gives no way to undo that other than an explicit reset.

On the MixTrack Platinum FX that makes Tap BPM a decision rather than a check. Use it when you know the analysis is wrong, and leave it alone when you are only curious.

The pads, and the row that never changes

Only the top row of four pads changes with the pad mode. Numark state that the bottom row is fixed to Stutter, Previous Track, Search Backward and Search Forward, so a pad mode gives you four pads and not eight.

Four pads per mode is the number to build a routine around on the MixTrack Platinum FX, and the fixed row is worth learning as a permanent part of the surface rather than as something you switch to.

Shift plus Scratch, and the chord that differs from the sibling

Shift plus Scratch does not toggle scratch on this model, it moves that hardware deck to a different software layer. Numark state that deck 1 can control layer 1 or 3 and deck 2 can control layer 2 or 4. On the near identical MixTrack Pro FX the same chord censors the track instead.

The two panels look the same and the chord does two different jobs, so a DJ moving between the pair should check which unit is in front of them before reaching for it.

The jog wheel displays, and one field with two meanings

Two jog wheel displays, and Numark list nine elements on them: active deck, platter position, BPM, keylock, pitch range, pitch, pitch adjust, time remaining and time bars. Display size, resolution and brightness are not stated.

The display field labelled Time Remaining can show either the time elapsed or the time remaining.

The displays are the one thing the MixTrack Platinum FX has that its sibling does not, and with no documented way to switch that field the safe habit is to read it against the waveform on the computer before you trust it.

The microphone, and the knob that actually controls it

Pulling the Master Gain down does not silence the microphone. Numark state that the master gain does not affect the microphone volume, which is summed with the final output of the Master Gain to the Master Output, and that the Mic Gain knob is what controls it. There is no microphone on or off switch described anywhere in the guide.

One microphone input on a 6.35 mm TS jack, for which Numark specify a standard dynamic microphone. There is no line, aux or phono input, and no second microphone input. No input level, impedance or gain figure is printed.

Plan for that on the MixTrack Platinum FX: with no on and off switch described, the working position between announcements is Mic Gain at zero, and a dynamic microphone is what Numark specify the socket for.

Connections and setup

What comes out, and what the specification table counts

The specification table lists three Outputs, and two of them are the front panel headphone sockets, which the table does not label as headphones. There is exactly one output to a PA on this unit and it is unbalanced RCA.

One RCA stereo pair to a PA, and headphone jacks on 6.35 mm and 3.5 mm on the front. No booth output and no balanced output of any kind.

44.1 kHz at 24-bit. No 48 kHz option appears anywhere in the guide.

Before you put the MixTrack Platinum FX on a rider, know that one unbalanced RCA pair is what the engineer gets, so a DI box or a short cable run is the difference between a clean feed and a noisy one.

Two setup steps that describe a different product

Work from the panel rather than from the setup list when you first plug the MixTrack Platinum FX in. The setup steps in several of these guides carry over from an older mixer manual. Both MixTrack guides say to plug all devices into AC power and to connect the outputs to audio sources, but the MixTrack units are USB bus powered and have no mains inlet, so the AC power step does not apply to them.

USB bus power. There is no mains inlet.

The practical reading is the simple one: the USB cable powers the unit and connects it to the software, and the RCA pair goes out to whatever is amplifying you.

Firmware, drivers and manuals

Official downloads and documents

Go to Numark for the files themselves. We link their pages instead of hosting a copy, because a manual copied here is a snapshot of release day and theirs is the one that stays current.

Manuals. Official Numark manual page →

Broken link? Let us know and we'll fix it.

Frequently asked questions

What is it?

A two channel controller for Serato DJ Lite with two jog wheel displays.

How big is it, and what does it draw?

53.6 x 24.6 x 5.1 cm, which Numark also print as 21.1 by 9.7 by 2.0 inches. 2.4 kg, which Numark also print as 5.35 lbs.

Numark print identical external dimensions for this model and the MixTrack Pro FX, even though only this one carries jog wheel displays. The weight is the only figure that differs between the two tables: 2.4 kg here against 2.3 kg.

USB bus power. There is no mains inlet.

What comes in the box?

The controller, a USB cable, a software download card, the user guide and a separate Safety and Warranty manual. No power supply, no audio cables.
