Numark NS7 III, field manual

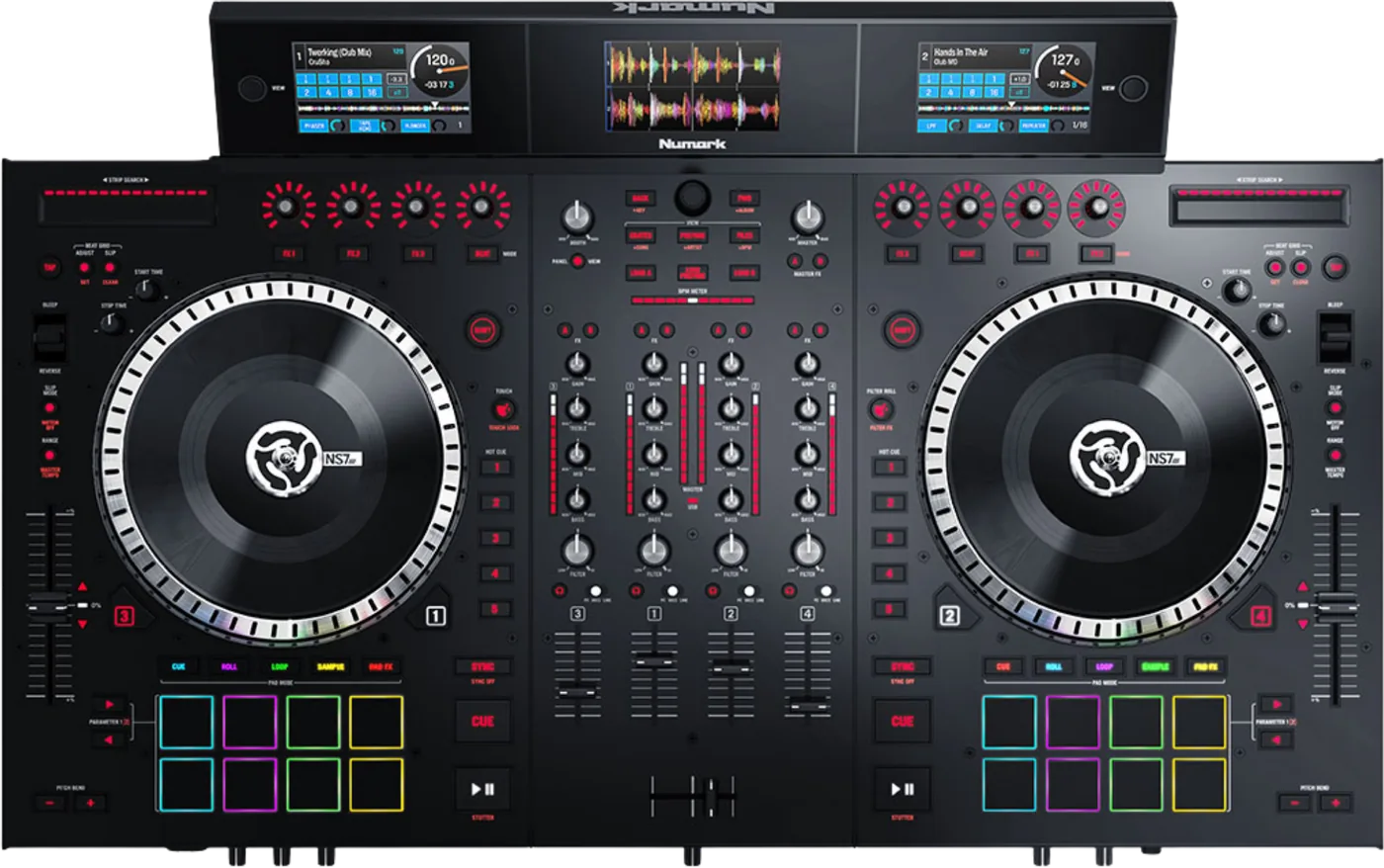

Numark NS7 III motorised four channel Serato DJ controller, top view with two platters and a detachable three screen display

Booth briefing. The NS7 III is a four-channel Serato controller in Numark's NS line, released in 2015 as the successor to the NS7 II. It keeps the motorised platters and adds a detachable display unit with three colour screens, mounted where a laptop stand would normally sit, showing the library, waveforms, key and BPM on the hardware. The computer connects to that display rather than to the deck, and the guide describes no other route to the computer. The Layer control moves each hardware deck between software layers.

Fast Lane

NS7 III: equipment profile

A motorised platter Serato DJ controller with a detachable display unit.

Software
Serato DJ. Sample rate 44.1 kHz at 24-bit.
Without a computer
Nothing plays without a computer. The mixer passes analogue: two Line/Phono RCA pairs, two line-only RCA pairs, and a quarter-inch Mic 1 input routed into the programme and cue mixes with its own gain, bass and treble.
What comes out
Master on XLR and RCA. Booth on RCA. Headphones on a quarter-inch and a 3.5 mm jack. Crossfader assign per channel. Slope knob. Distortion under 0.008 per cent on every analogue output.
Power
100 to 240 V at 50 to 60 Hz through an IEC connector, 125 W consumed. The display unit is fed from a DC output on the base.
What the computer needs
The To PC port is on the display unit. The base has a USB port to the display and the display one back to the base. Codec dynamic range better than 114 dB, channel separation better than 94 dB over USB.
Dimensions and weight
75.5 cm wide, 46.3 deep, 12.1 tall (29.7 × 18.2 × 4.8 in). 14.3 kg / 31.5 lb.
Released
2015

NS7 III User Guide v1.1 and its Technical Specifications table.

The five things that decide your gig

The NS7 III in five points, each linked to its section.

The control is called Layer. There is no Deck Select switch on the unit.

Several names in the paperwork, one on the machine.

The Layer control, and the names the guide gives it

The computer plugs into the display, not into the deck.

No display, no path to the computer.

The display unit, its cables and its power

No platter size, no torque figure, and no calibration procedure in the guide.

Numark publish calibration guidance separately.

Where a calibration procedure actually comes from

The drivers are scoped to Windows users only, and macOS is never addressed.

Mac owners are left to find out.

The drivers, the software and what is not scoped

For a turntable, use the input pair that has a Line and Phono switch beside it.

Set the switch to match the device.

The two input pairs, and how each edition describes them

Official equipment video

Note: This feature requires an internet connection.

What to watch for

One manual printed in five languages

The NS7 III guide is a single PDF carrying English, Spanish, French, Italian and German, and the editions differ in places. A guide that carries five languages in one PDF is translated and laid out in separate passes, so small differences between the editions are normal, and they vary from guide to guide. The ones that change what a DJ would do are noted model by model.

On this model the differences run in both directions, which is worth knowing before anyone assumes one edition is the reliable one.

The two input pairs, and how each edition describes them

Only one of the two rear input pairs on an NS7 III takes a turntable, and the switch beside it is how you tell. Use the input pair that has a Line and Phono switch beside it for a turntable. The Spanish edition describes the Line and Phono inputs as line only: it keeps the correct title, Entradas de linea/fonografica, but gives the entry word for word the same body text as the genuinely line only pair below it, so the sentence saying those inputs accept both line and phono level signals is gone, while the very next entry still tells the reader to set a Phono switch. Both NS7 Spanish editions carry a version of this.

Firmware and updates

The NS7 III boots three screens and browses a library, and its guide carries no product version of any kind. The words firmware and update appear zero times in this guide, in any of its five languages, in a product that boots three screens and browses a library. There is no update procedure, no version number, no serial number range and no hardware revision, so nothing in the document can be dated to a release and no way is given to read what is installed. The only version the document carries is its own, Manual Version 1.1. What it gives instead is a Windows driver download.

Compatibility

The drivers, the software and what is not scoped

Budget time for the NS7 III driver step on a Windows machine, and expect the guide to say nothing at all about a Mac. Numark scope the drivers to Windows users only, downloaded from numark.com, and give no install order: the NS7 II’s instruction to install the drivers before the software has been dropped from this document. Whether the unit is class compliant on macOS is not stated, and system requirements are not in the guide either.

The guide names the software Serato DJ, and the strings Serato DJ Pro, Serato DJ Lite and Serato DJ Intro appear nowhere in the document. The box lists Serato DJ software as a download with no card, and no serial number, licence, activation or registration step is mentioned anywhere, so whether the hardware unlocks anything and whether a licence is included are not stated.

What Serato say, including the driver line

Serato’s quick start guide for this model states it is a Serato DJ Pro hardware unlocked device, meaning it unlocks Serato DJ Pro when connected.

It also states the NS7 III is a paid upgrade to Serato DVS device, meaning DVS functionality requires the purchase and activation of a Serato DVS licence.

On drivers Serato answer what this guide does not. They state the NS7 III requires drivers for both Mac and Windows, downloaded with any available firmware updates from Numark. The guide scopes its own driver line to Windows users and never addresses macOS, so a Mac owner working from the document in the box would not know to install anything.

DVS and timecode

An NS7 III rear panel looks timecode ready. Numark describe the rear phono inputs as audio inputs only and make no DVS claim for the NS7III.

Does it pass audio with no computer?

The screens make people ask this of the NS7 III more than of any other Serato controller, and the guide does not answer it. Whether the unit passes audio with no computer is not stated. The word standalone never appears, every playback control is described as controlling something in the software, the USB Indicator is described as lighting when the unit is communicating with the computer, and the Quick Start requires a computer running Serato DJ. The one thing that points the other way is the display’s powered USB host port, which takes an optional hard drive and is documented in a single sentence that stops short of saying what the drive is for.

Features explained

The display unit, and why it is not an accessory

Pack the NS7 III display and its two small cables with the deck, because the computer connects through it. The computer does not plug into the deck. Numark have you connect the To PC USB port on the display unit to the computer, while the NS7III’s own rear USB port carries only the short link to the display. The audio and control path therefore runs deck, display, computer. Nothing in the guide says what happens if the display unit is left at home, not fitted or unpowered, and there is no other route to the computer described.

A detachable unit carrying three screens, specified as three 95 by 55 mm full colour LCD screens on a detachable unit. It mounts on the two brackets on the rear panel, which Numark note would typically hold a laptop stand, so the screens occupy the laptop position. No pixel resolution, no brightness and no viewing angle is given for them anywhere.

The display is a second powered device. It has its own Display Power Switch, it draws DC through a small cable from a Power Output on the NS7III’s rear panel, and Numark add a Cable Restraint specifically to help prevent that cable disconnecting accidentally. The startup order treats the two as one item, turn on input sources, then the NS7III and display unit, then output devices, while the display switch stays separate, so it is possible to power the deck and not the screens. Three cables serve the display in total, its USB link, its DC lead and the ordinary USB cable that runs to the computer, and two of them are small parts that are easy to lose.

The powered USB port on the display, in one sentence

The NS7 III display has one more port to know about. Do not plan a set around the display's USB port: no file system, file format or standalone playback is given for it.

That sentence is the whole of the published record for that socket, so nothing should be promised to a client on the strength of it.

What the three screens show, and the five second timeout

The NS7 III puts on the hardware most of what a DJ would otherwise read off a laptop. The left and right screens show Performance View 1 or Performance View 2 and the centre screen shows Library View or Waveform View, cycled by a View button beside each deck’s screen. Between them they put track name, artist, key, deck BPM, remaining time, pitch range, effect names, hot cues, loops and a virtual platter on the hardware. Waveforms are colour coded by frequency, red for bass, green for mid range and blue for treble.

The library screen has a five second timeout. Numark state that turning the Scroll Knob enters Library View immediately and that after five seconds without touching the knob the display returns to Waveform View. No way to change or disable that timeout is described, so a pause to speak to someone mid browse costs the scroll position.

The Layer control, and the names to ignore

On the NS7 III the control that swaps a deck between its two software layers picks up more names than any other control on the machine. The control is called Layer. The English Takeover LEDs entry tells the reader to select the other deck with the Deck Select switch, a name that appears nowhere else in the document and is not printed on the unit, while item 5 of the same English section defines the control as Layer. The English also calls the same control the Deck button in one display view and the Layer button in another, so one control carries three names in English plus a fourth that is not on the hardware. The Spanish, French, Italian and German editions all say Layer, so on this point the translations are the accurate text.

The pitch range button is given two names and two range notations in one document. The top panel entry calls it Range / Master Tempo and gives ±8%, ±16% and ±50%, while both display sections call it Range / Keylock and give plus 8%, plus 16% and plus 50%. There is no button labelled Keylock in the control list, and whether the range is symmetrical cannot be settled from this document.

The document spells the model NS7III as one word 171 times, and the spaced form NS7 III appears nowhere in the file in any language. The display unit’s own USB port is silkscreened NS7 rather than NS7III. Unlike the NS7 II, no product specific support address is given: both the Support line and the Drivers line say only numark.com.

The Input Selector, and the sentence that matters most

This is the first thing to check on an NS7 III channel that has stopped talking to the software. Check the Input Selector before you suspect the hardware. Numark state that a channel’s controls will only send MIDI information when its Input Selector is set to PC, so a channel sitting on Line or Mic 2 has a gain, EQ, filter, fader and PFL that send nothing to Serato at all. It is the ordinary explanation for a channel strip that appears to have died, and it is word for word the same sentence the NS7 II carries.

Each channel Input Selector has three positions and no off: PC for the software layer, Line for a device on that channel’s Line input, and Mic 2 for the rear panel microphone. Numark add that the rear panel Line and Phono switches have to be set to match, and warn that setting more than one channel’s selector to Mic 2 can cause feedback or distortion.

Numark print it as a note rather than as a warning, which is the only reason it surprises anyone. Learn the three positions once and the whole class of fault stops being mysterious.

The platters, the torque switch and the numbers nobody published

The NS7 III is bought for its platters, and the platters are what the guide says least about. The guide gives no platter diameter, no torque figure, no start time and no stop time in seconds. Start Time and Stop Time are knobs beside the platter with no numbers, no ranges and no factory positions. Torque is a two position rear panel switch described only by feel, the high setting giving the heavier, stronger feel of modern turntables and the low setting lighter and more graceful, the feel of a classic turntable. Which position it ships in is not stated.

The platters ship unassembled and the owner fits them, exactly as on the NS7 II: two platter assemblies each with an aluminium platter, a slipmat, a vinyl and an attached 45 RPM adaptor, plus a spindle screw and an allen wrench. The pins under the platter align with holes in the motor, the slipmat goes on the platter and the vinyl over it, and the 45 adaptor is locked to the spindle with the allen wrench.

Shift plus the Slip Mode button activates or deactivates that platter’s motor, and Numark state that it does not affect the track’s playback. Which state the motor is in at power up, and whether motor off survives a power cycle, are not stated.

Set the two knobs by ear against a track you know, and note where you left them, because there is no printed reference position to return to.

The pads, the loop order and a sampler diagram to trust

The NS7 III carries five pad mode buttons and ten modes, and two of the modes changed from the generation before. Five pad mode buttons, each toggling two modes across eight pads per deck: Cues gives Hot Cue and Hot Cue Auto-Loop, Auto and Roll gives Auto-Loop and Loop Roll, Loop gives two banks of Saved Loop Mode, Sampler gives Sample Player and Sample Velocity Trigger, and Slicer gives Slicer and Slicer Loop. Numark state that when a mode button is unlit the first press always selects the first of its two modes, and that Slicer and Slicer Loop need a track with a Beat Grid set.

Saved Loop Mode replaces the NS7 II’s Manual Loop Mode and the order of operations is different. Numark have you create the loop first with pads 5 and 6, then save the active loop to one of pads 1 to 4, and they add that a loop can be saved regardless of how it was created, naming Saved Loop, Auto-Loop and Loop Roll. Pad 7 activates or deactivates the loop, pad 8 returns to the last triggered loop, and Shift plus a top row pad deletes a saved loop.

The Sampler text and the Sampler pad diagram do not agree about two pads. The text says pads 1 to 6 each trigger a sample, and the diagram directly beneath it reads Sample 1, Sample 2, Sample 3, Play Mode on the top row and Sample 4, Sample 5, Sample 6, Player Repeat on the bottom. Under the guide’s own pad numbering the sample pads are therefore 1, 2, 3, 5, 6 and 7, and the stop instruction agrees with the diagram rather than the sentence. Build a six sample layout from the diagram, not from the sentence. Velocity sensitivity is described as applying in certain modes only, and Sample Velocity Trigger is the one mode Numark ever name.

Three Beat Grid operations sit within one button of each other and none asks for confirmation. Slip / Clear held with a hand on the platter shifts the whole grid, Shift plus that button deletes the grid entirely, and Adjust / Set warps the grid and, as Numark state, changes the track’s BPM. The result lands in the Serato library rather than only in that set.

Touch Mode, which makes a knob audible before you turn it

Touch Mode changes what a hand on an NS7 III knob does, and there is nothing on the panel to read the state off. Touching a knob can change the audio. Numark state that with Touch Mode activated, touching the Channel Treble, Mid or Bass knob mutes that channel’s frequencies as an EQ kill, and that these functions are momentary rather than latching. Touch Mode covers the three FX knobs on its own and Shift plus Touch Mode extends it to the EQ knobs. There is no latched state to read off the panel while the mode is on.

Bleep and Reverse are two positions of one switch and they sound the same while engaged. Numark state that returning the switch from Reverse resumes playback from wherever the audio pointer stopped, while returning it from Bleep resumes from where the track would have been if the function had never been engaged. You cannot hear which one you chose until you let go.

Connections and setup

What goes in, and where each microphone ends up

The NS7 III has two kinds of line level input and two microphone inputs that behave nothing like each other. Line and Phono RCA inputs with a Line and Phono switch and a grounding terminal, a second and separate pair of Line only RCA inputs, one microphone on a 6.35 mm jack on the front panel with its own on and off switch, gain, bass and treble, and a second microphone on a 6.35 mm jack on the rear that takes over a mixer channel through that channel’s Input Selector. How many pairs there are of each input, and which channel each feeds, is not stated. There is no XLR microphone input and no phantom power statement.

Numark state that the front panel Mic 1 signal is routed directly to the Program Mix and Cue Mix, so it has no channel fader, no crossfader assign and no way out of the headphone cue. Mic 2 takes a whole mixer channel instead and gets that channel’s strip.

What comes out, and the two controls on the front panel

The NS7 III gives an engineer a balanced feed, gives the booth an unbalanced one, and feeds its own display from a fourth socket. A balanced XLR master, an unbalanced RCA master, an unbalanced RCA booth, headphones on 6.35 mm and 3.5 mm on the front panel with Split Cue and Cue Blend, and a DC Power Output on the rear that feeds the display unit. There is no balanced booth output, no digital output and no record output. The rear panel calls the level controls the Master knob and the Booth knob while the top panel names them Master Volume and Booth Volume.

Per channel Crossfader Assign switches with three positions, A, B or centre Off, and Numark state that the centre position bypasses the crossfader and sends that channel straight to the Program Mix. The curve is set by a Crossfader Slope knob, left for a smooth fade and right for a sharp cut, and Numark recommend the centre position as a typical setting for club performances. Both sit on the front panel rather than the top surface, so set them before the unit goes into a case.

The crossfader entry is one sentence about blending audio between the channels, and nothing else is published. No fader type, no brand, no part number, no cut-in, no cut lag, no tension, no replacement procedure and no statement of whether the fader is user replaceable. The specification table has no crossfader row, and there is no fader calibration of any kind in the document.

The power on order, deck and display together

Set an NS7 III up in this order and the display comes up with the deck rather than after it. Connect your input devices, then power the unit and display on, then power on the amplifiers, and shut down the other way round. The Spanish rear panel entry of this document prints that order correctly, despues de haber conectado todos los dispositivos. The NS7 II Spanish reverses the same sentence, so the slip belongs to that one document and not to the family.

On four of these seven models the Spanish edition of the manual differs from the English in a way that changes what a DJ would do. Two of them reverse an instruction outright: the NS6 II and the NS7 II Spanish rear panels say to power the unit on after disconnecting the input devices, where the English says after connecting them, and the NS6 II Spanish contradicts its own setup section a dozen pages earlier. Where the two disagree, the English edition is the reference.

Calibration, and the document it has to come from

If an NS7 III platter needs adjusting, start here. Platter calibration lives in a separate Numark support article. The only platter adjustment on the unit itself is the two position torque switch.

Numark publish a support knowledge base with per model articles. The NS7 II, the NS7 III, the SCRATCH and the Mixstream family have articles of their own.

Firmware, drivers and manuals

Official downloads and documents

Go to Numark for the files themselves. We link their pages instead of hosting a copy, because a manual copied here is a snapshot of release day and theirs is the one that stays current.

Manuals. Official Numark manual page →

Broken link? Let us know and we'll fix it.

Frequently asked questions

What is it?

A four channel Serato DJ controller with two motorised platters, four software layers, a built in mixer and a detachable three screen display.

How big is it, what does it weigh, and how does the table read?

The English appendix gives signal to noise for the USB path and for the analogue path, THD plus N, channel separation and frequency response per output, plus THD for both microphones and for the phono input. Frequency response is given as 20 Hz to 20 kHz, the converters as 44.1 kHz at 24-bit, power as 100 to 240 V at 50 to 60 Hz through an IEC cable connector with 125 W consumption, the screens as three 95 by 55 mm LCDs on a detachable unit, and the fully assembled unit as 75.5 by 46.3 by 12.1 cm and 14.3 kg, which Numark also print as 29.7 by 18.2 by 4.8 inches and 31.6 lbs.

The dimensions row is headed fully assembled and the weight row carries no qualifier at all, so whether 14.3 kg includes the detachable display unit is not stated. The 125 W consumption figure is likewise unqualified, and the display draws its DC power from the deck, so whether that figure covers the screens is also not stated. Both are the numbers a DJ needs when sizing a case or checking an airline limit.

Both frequency response figures carry a plus tolerance and no minus tolerance, printed as plus 0.2 dB and plus 0.5 dB, so how far the response may fall is unspecified. Frequency and sample rate are written with a capital K, as 20 KHz and 44.1 KHz, where the NS7 II table one generation earlier writes kHz. The metric dimensions are in centimetres here and in millimetres on the NS7 II, which makes a like for like comparison of the two tables slower than it should be.

This one or the NS7 II?

This generation adds four things over the NS7 II at the display end: the detachable three screen display itself, with its own View button, its own power switch, its own DC feed from the deck and a cable restraint for that lead; onboard library browsing, waveforms, key, BPM, remaining time and effect names; a computer connection through the display instead of the deck; and a powered USB host port on the display, documented in one sentence and never explained. On the deck it brings Saved Loop Mode in place of Manual Loop Mode, a stop function for samples and live functions on the two pads the NS7 II leaves dead, and Shift plus an FX knob to scroll the effect list. It also carries a power specification, 100 to 240 V at 50 to 60 Hz and 125 W, where the NS7 II table gives none. What the NS7 II keeps: a printed User Guide in the box, drivers for all users rather than Windows only, the instruction to install the drivers before the software, and a product specific support address. The spec divergences are odd in both directions: this unit is published 2.1 lbs lighter than the NS7 II despite gaining a three screen display, and neither table says whether its figure includes that display, so the two numbers may not be measuring the same object. The II is also 0.3 inches wider while this one is 2.3 inches deeper and 0.6 inches taller, and the codec dynamic range row that the II prints without a greater than sign carries one here.

The weight line at the end of that paragraph is the one to hold on to when sizing a flight case. A figure that is lower than the generation before it, on a machine that gained a screen unit, is a figure to confirm on a scale rather than to plan an airline allowance around.

What comes in the box?

The unit, two platter assemblies, a spindle screw, an allen wrench, the display unit with a display USB cable and a display power cable, the Serato DJ software as a download, a USB cable, a power cable, a Quickstart Guide, the User Guide as a download and a separate Safety and Warranty manual. The printed User Guide the NS7 II carried is not in this box, and Numark note that anything shown in the diagrams but not on that list is sold separately.
