DDJ-SZ2, the field manual

The five things on the DDJ-SZ2 that change what happens next, if you are reading this in the booth. All five are explained in full further down this page.

Short answer. AlphaTheta document one failure that looks like a dead unit and is a setting: "The function of ‘forcefully using the unit as the general MIDI controller’ might be activated." A unit stuck in that mode will not be recognised as a DDJ-SZ2 by Serato at all. The remedy is to disconnect the USB cable, enter utilities mode, and if the KEY LOCK button is lit, press it to turn the function off.

Why this is first. Every other cause of a controller Serato cannot see, a cable, a driver, a port, is something people already try. This one is a setting inside the unit that nobody would guess at, and while it is on, no amount of reinstalling anything will help.

How to check it. Disconnect the USB cable, enter utilities mode, and look at the KEY LOCK button. Lit means the function is on.

Related: The other reasons Serato cannot see it A Windows install that fails on a tickbox Start Emergency Mode

Short answer. When Serato DJ does not recognise the unit, AlphaTheta document a reset per platform. On Windows, go to Control Panel and Sound, pick any audio device other than the DDJ-SZ2, set it as the default device, close the panel and restart. On macOS, open Applications, Audio MIDI Setup, the MIDI window, and remove the Pioneer device; the article notes the icon disappears and comes back again. Then power cycle the unit and launch the DJ application.

If the computer itself does not see it. AlphaTheta document a full driver removal: on Windows open Device Manager, look under Sound, Video and Game controller, right click anything showing a question mark or an exclamation mark and delete it, remove all DDJ-SZ2 entries the same way, disconnect USB, uninstall the driver, restart, reinstall, then reconnect. On macOS they say the driver may not have installed properly and the answer is the same sequence.

One oddity in their own text. Inside AlphaTheta's DDJ-SZ2 article the macOS step refers to a "PIONEER DDJ-SZ" icon while the title and the rest of the text name the DDJ-SZ2. It is quoted here as printed rather than silently corrected. It tells you nothing about the DDJ-SZ, which is a different unit.

And rule out the setting first. If the unit is in general MIDI mode, none of the above will work.

Related: The mode that makes it vanish macOS, and where support actually stops

Short answer. One Windows failure has a cause almost nobody guesses. If "The device driver software was not properly installed" appears, AlphaTheta say to disconnect the unit and leave it disconnected, uninstall the driver, restart, then right click the installer, open Properties and the Compatibility tab, choose to display the settings of all users, and untick "Run this program in the compatibility mode" if it is ticked. They also suggest renaming the installer file and reinstalling.

Why the tickbox matters. AlphaTheta name compatibility mode on the installer as the thing to clear before reinstalling. They do not say what sets it, so this page does not either. Untick it, and if the message survives, rename the installer file and reinstall, which is their second suggestion.

The order matters. AlphaTheta's instruction is to leave the DDJ-SZ2 disconnected until the driver software is reinstalled. They do not say what happens if you reconnect early, and this page does not guess.

Related: The other reasons Serato cannot see it Windows, where this unit is entirely current

Short answer. macOS Tahoe 26 is the line this controller does not cross. Serato list the DDJ-SZ2 under Currently Unsupported Hardware for macOS 26 Tahoe, alongside the DDJ-SZ. AlphaTheta have published no Tahoe driver for it and their supported OS page does not mention Tahoe, so they are silent rather than disagreeing. Both point the same way.

What AlphaTheta actually say. AlphaTheta’s DDJ-SZ2 operating system page names macOS Ventura 13, Monterey 12 and Big Sur 11, plus Windows 11 and Windows 10. That page states it was last updated 7 August 2023, which is before macOS Sequoia existed. The age of the page is the finding: the list stops because nobody has revised it, not because a version was ruled out.

And Sequoia, which sits in the gap. Serato list the DDJ-SZ2 under Supported hardware for macOS 15 Sequoia from Serato DJ Pro and Lite 3.2.3. AlphaTheta’s own list predates the question entirely, so it does not contradict this; it is silent.

The driver history, which is the clearest signal. Version 4.0.3, which the change history dates 28 November 2023 and whose Help Center article is dated 30 April 2024, and its stated improvement is "macOS Sonoma support." That is the highest Mac driver version for this model. There is no Sequoia driver and no Tahoe driver: the Drivers section lists exactly two articles, the Sonoma one and the Windows one.

What this page does not say. No maker has written that this unit is discontinued or that its support has ended. What can be said is the list of what has and has not been published, and that list is above.

Related: Windows, where this unit is entirely current Firmware, frozen since 2017

Short answer. Serato’s known issue about losing audio output on macOS when another application takes focus names the DDJ-SZ2 on its affected list. The macOS versions named are Catalina, Big Sur and Monterey, and the resolution Serato give is Pioneer driver 4.0.1 or 4.0.1.1, or Serato DJ Pro 2.6.0 or higher.

What it looks like. The controller keeps responding and the sound is gone, immediately after you clicked on another application. It is not a diagnosis anyone reaches under pressure.

What to do. Check your driver version against the one Serato name as the fix. The current Mac driver for this model is newer than that, so a unit on the current driver is not exposed.

Related: macOS, and where support actually stops Before you play on one

Short answer. On Windows 10 and 11 the DDJ-SZ2 is current. AlphaTheta name both on their supported OS page and Serato list the unit under Supported hardware for Windows 11 with no footnote. If you own one and you are on Windows, nothing here applies to you.

The driver. Version 1.110, released 9 December 2021, with the change note that minor issues were fixed. The article names no Windows version itself and defers to the supported OS page.

Why this section exists at all. A page that led with macOS and stopped would leave a Windows owner believing their working controller is obsolete. It is not. The constraint on this unit is a macOS constraint and it does not travel.

Related: macOS, and where support actually stops A Windows install that fails on a tickbox

Short answer. rekordbox does not list the DDJ-SZ2 as a compatible unit in any mode. It is absent from the compatible DJ units page, the hardware unlock page and AlphaTheta’s rekordbox ver. 5 compatible units list. The predecessor DDJ-SZ is on both rows of that list and the DDJ-SZ2 is on neither, the same way round as the DDJ-SX2 and DDJ-SX3 pair. That is an omission from a list and not a printed denial.

Why the phrasing is careful. An omission from a list is not a printed denial. Nobody at AlphaTheta has written that the DDJ-SZ2 does not work with rekordbox, and this site will not write it for them.

What it means if rekordbox is your library. Do not buy this unit expecting rekordbox hardware unlock. Every maker statement about it is about Serato.

Related: Serato DJ Pro, and what came in the box How it compares with the DDJ-SX3

The licence. AlphaTheta state "Those who use DDJ-SZ2 do not have to activate the unit or buy the license. If you connect DDJ-SZ2 to Serato DJ Pro, you can use the software without buying the license or activating the unit." Serato say the same and add that it works with Serato Studio.

The naming, which trips people up on second hand listings. AlphaTheta print the naming change on this model’s own article: "Serato DJ Intro and Serato DJ have been renamed and are now known as Serato DJ Lite and Serato DJ Pro, respectively." That is why older DDJ-SZ2 material says Serato DJ. It is a Serato DJ Pro unit.

Flip and Pitch ’n Time. Pioneer state the unit comes bundled with Serato DJ Pro and that "the Pitch n’ Time and Serato Flip expansion packs are also included." AlphaTheta name both as supported. Whether that entitlement follows a second hand unit is not stated by anyone.

DVS. The unit has two sets of phono inputs, so it is physically equipped for timecode, but the DVS licence is still a paid Serato expansion pack for Control Vinyl or Control CDs. That statement rests on Serato. No AlphaTheta article on DVS for this model was found, unlike the DDJ-SX3, which has one.

Serato Video, and what it actually was. Pioneer put "a voucher for a free Serato Video expansion pack in the boxes of the first 3,000 DDJ-SZ2 controllers that we ship worldwide." That was a launch promotion limited to the first three thousand units and it is not a general claim that Serato Video is included.

Related: rekordbox, and the list this unit is not on Quick answers

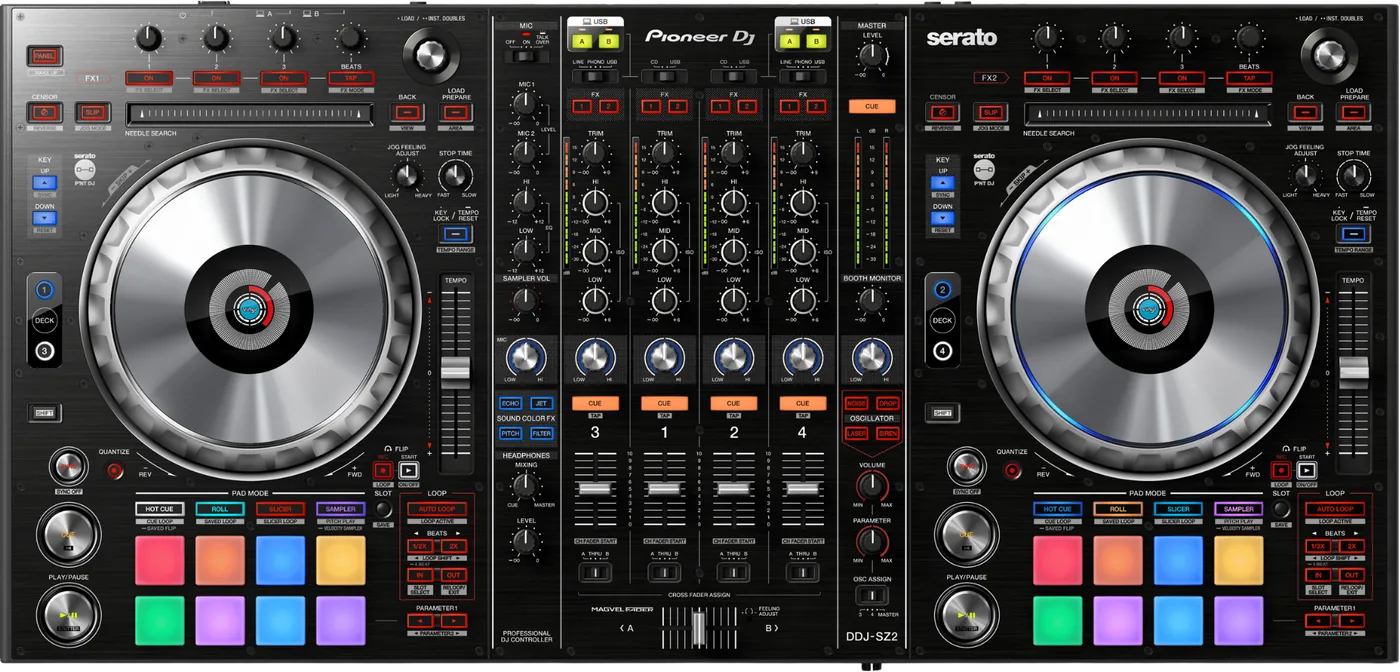

The hardware. The jog wheels are "Big Jogs taken from the CDJ-2000NXS2" with an illuminating on jog display, and the crossfader is the Magvel from the DJM-900NXS2. Jog wheel diameter is not published. The oscillator has four sounds: Noise, Drop, Laser and Siren.

What Pioneer frame as new. Pioneer frame it as an upgrade to the controller that sat at the top of their Serato range. The sourced changes are jog wheel latency, "thanks to the improved jog wheel latency, scratching is more responsive and precise", multicoloured performance pads that "give you instant feedback on pad modes", dedicated controls for key shift and key sync plus Pitch Play and three Serato Flip recording buttons, the Magvel crossfader "taken from the club standard DJM-900NXS2", and a Cirrus Logic D/A converter with a low jitter oscillator. Dual USB ports, Sound Colour FX, Slip Mode and needle search are on the unit but Pioneer do not frame them as changes from the DDJ-SZ, so this page does not either.

Why the last sentence of that matters. Plenty of writing about this unit lists dual USB and Sound Colour FX as upgrades over the DDJ-SZ. Pioneer never said they were, so this page does not.

Related: How it compares with the DDJ-SX3 What goes in and what comes out

Short answer. Against the DDJ-SX3 the differences are physical and they matter for a bag. The DDJ-SZ2 has four sets of CD/LINE inputs plus two sets of phono, where the SX3 has two line and two line or phono. The SZ2 has two microphone inputs and the SX3 has three. The SZ2 takes AC mains directly at 30 W and the SX3 runs from a DC 5 V adapter. The SZ2 weighs 10.7 kg against 6.1 kg and is 870 mm wide against 664 mm. And on macOS 26 Tahoe, Serato list the SX3 as supported and the SZ2 as currently unsupported.

The one that decides a used purchase. Both are four channel Serato desks of the same generation. One of them is still getting macOS drivers and one of them is not. If the machine you work on is a Mac, that is the whole comparison.

The one that decides whether you can carry it. 10.7 kg against 6.1 kg, and 870 mm wide against 664 mm. This is a desk you install, not one you take on a train.

Related: The DDJ-SX3 macOS, and where support actually stops

The version they publish today. Ver. 1.04, dated 24 October 2017, and it is still the current one. Its listed changes are "[FIXED] Needle Search did not work on rare occasions." and "[IMPROVED] Accuracy of the tempo slider." A unit below 1.04 carries both. No firmware has been issued for this model since October 2017.

How to read and change it. Connect the unit by USB, launch the Settings Utility and read the version in the [About] tab. To enter update mode, "Press the power button while pressing the [SHIFT] button and the [SYNC] buttons on the left deck", and you will know it worked because "the LED at the top of the MASTER level meter flashes." Firmware ships as separate Windows and Mac packages.

The updater has its own operating system limits. The firmware update guide names the updater's supported systems as Windows 10, 8.1 and 7, and macOS 10.12, OS X 10.11 and OS X 10.10. Unlike the DDJ-SX3 updater, this one states no Java requirement.

Nothing before 1.04 is published. The change history document covers only that version, so this page does not say what 1.00 through 1.03 changed.

Related: macOS, and where support actually stops What the maker still publishes

Pack a mains lead, not a power brick. This is the only one of Pioneer’s Serato controllers on this site with an AC inlet rather than a DC adapter.

If you work on a Mac, do not update it. Serato list this unit as currently unsupported on macOS Tahoe and AlphaTheta have shipped no Tahoe driver for it. Their highest Mac driver version for this model added Sonoma support.

If you work on Windows, ignore that entirely. Both makers name Windows 10 and 11 for this controller.

Learn where the general MIDI mode toggle is. It is the failure that looks like a dead controller and is a lit button in utilities mode.

Check the firmware version on a used unit. Below 1.04 you have a documented Needle Search fault and a less accurate tempo slider.

Related: The pre-gig checklist Why gig day is a freeze

Inputs. It has four sets of RCA CD/LINE inputs, two sets of RCA phono inputs, MIC1 on XLR or 6.3 mm jack and MIC2 on 6.3 mm jack.

Outputs. MASTER 1 on XLR, MASTER 2 on RCA, one 6.3 mm booth output, and 6.3 mm and 3.5 mm headphone outputs.

To the computer. two USB type B ports, so two computers can be connected at the same time.

Power, and it is not like its siblings. It runs from an AC mains inlet at AC 110 V to 240 V, 50 Hz/60 Hz, drawing 30 W and 0.4 W on standby. There is no external DC adapter on this model, unlike the DDJ-SX2, DDJ-SX3 and DDJ-SR2.

The physical facts. It measures 870 x 419.5 x 98.4 mm as width, then depth, then height, weighs 10.7 kg and is rated for +5 to +35 degrees C and under 85 percent relative humidity, with the cooling vents unblocked. Its audio path is 44.1 kHz sampling rate, 24 bit A/D and D/A conversion, 20 Hz to 20 kHz, with signal to noise ratios of 111 dB on USB and 97 dB on CD/LINE, and total harmonic distortion of 0.002 percent on USB and 0.004 percent on CD/LINE.

Where these figures come from. The Pioneer DJ DDJ-SZ2 Operating Instructions (Quick Start Guide) specifications table, read on a third party mirror.

Related: macOS, and where support actually stops The other reasons Serato cannot see it

The documentation for this model is intact. AlphaTheta host the full Operating Instructions on their own download server, plus the macOS driver change history, the Windows firmware change history, the firmware update guide and separate Windows and Mac firmware packages.

What has stopped is the building, not the publishing. Version 4.0.3, which the change history dates 28 November 2023 and whose Help Center article is dated 30 April 2024, and its stated improvement is "macOS Sonoma support." That is the highest Mac driver version for this model. There is no Sequoia driver and no Tahoe driver: the Drivers section lists exactly two articles, the Sonoma one and the Windows one.

Two dates in the launch material do not line up. Pioneer’s announcement is dated 20 December 2016 and states availability as mid December 2016. The two do not line up and this site prints both rather than picking one.

Related: Firmware, frozen since 2017 macOS, and where support actually stops

Go to AlphaTheta for the files themselves. We link their pages instead of hosting a copy, because a manual copied here is a snapshot of release day and theirs is the one that stays current.

Does it work on macOS Tahoe?

macOS Tahoe 26 is the line this controller does not cross. Serato list the DDJ-SZ2 under Currently Unsupported Hardware for macOS 26 Tahoe, alongside the DDJ-SZ. AlphaTheta have published no Tahoe driver for it and their supported OS page does not mention Tahoe, so they are silent rather than disagreeing. Both point the same way.

Does it work on macOS Sequoia?

Serato list the DDJ-SZ2 under Supported hardware for macOS 15 Sequoia from Serato DJ Pro and Lite 3.2.3. AlphaTheta’s own list predates the question entirely, so it does not contradict this; it is silent.

Does it work on Windows 11?

On Windows 10 and 11 the DDJ-SZ2 is current. AlphaTheta name both on their supported OS page and Serato list the unit under Supported hardware for Windows 11 with no footnote. If you own one and you are on Windows, nothing here applies to you.

Which macOS driver should I have?

Version 4.0.3, which the change history dates 28 November 2023 and whose Help Center article is dated 30 April 2024, and its stated improvement is "macOS Sonoma support." That is the highest Mac driver version for this model. There is no Sequoia driver and no Tahoe driver: the Drivers section lists exactly two articles, the Sonoma one and the Windows one.

Which Windows driver should I have?

Version 1.110, released 9 December 2021, with the change note that minor issues were fixed. The article names no Windows version itself and defers to the supported OS page.

Which firmware version should it be on?

Ver. 1.04, dated 24 October 2017, and it is still the current one. Its listed changes are "[FIXED] Needle Search did not work on rare occasions." and "[IMPROVED] Accuracy of the tempo slider." A unit below 1.04 carries both. No firmware has been issued for this model since October 2017.

How do I update the firmware?

Connect the unit by USB, launch the Settings Utility and read the version in the [About] tab. To enter update mode, "Press the power button while pressing the [SHIFT] button and the [SYNC] buttons on the left deck", and you will know it worked because "the LED at the top of the MASTER level meter flashes." Firmware ships as separate Windows and Mac packages.

Serato cannot see the controller at all. What now?

AlphaTheta document one failure that looks like a dead unit and is a setting: "The function of ‘forcefully using the unit as the general MIDI controller’ might be activated." A unit stuck in that mode will not be recognised as a DDJ-SZ2 by Serato at all. The remedy is to disconnect the USB cable, enter utilities mode, and if the KEY LOCK button is lit, press it to turn the function off.

Do I get Serato DJ Pro for free?

AlphaTheta state "Those who use DDJ-SZ2 do not have to activate the unit or buy the license. If you connect DDJ-SZ2 to Serato DJ Pro, you can use the software without buying the license or activating the unit." Serato say the same and add that it works with Serato Studio.

Is Serato DVS included?

The unit has two sets of phono inputs, so it is physically equipped for timecode, but the DVS licence is still a paid Serato expansion pack for Control Vinyl or Control CDs. That statement rests on Serato. No AlphaTheta article on DVS for this model was found, unlike the DDJ-SX3, which has one.

Is Serato Video included?

Pioneer put "a voucher for a free Serato Video expansion pack in the boxes of the first 3,000 DDJ-SZ2 controllers that we ship worldwide." That was a launch promotion limited to the first three thousand units and it is not a general claim that Serato Video is included.

Does it work with rekordbox?

rekordbox does not list the DDJ-SZ2 as a compatible unit in any mode. It is absent from the compatible DJ units page, the hardware unlock page and AlphaTheta’s rekordbox ver. 5 compatible units list. The predecessor DDJ-SZ is on both rows of that list and the DDJ-SZ2 is on neither, the same way round as the DDJ-SX2 and DDJ-SX3 pair. That is an omission from a list and not a printed denial.

Does it use a power adapter?

No. It runs from an AC mains inlet at AC 110 V to 240 V, 50 Hz/60 Hz, drawing 30 W and 0.4 W on standby. There is no external DC adapter on this model, unlike the DDJ-SX2, DDJ-SX3 and DDJ-SR2.

How does it compare with the DDJ-SX3?

Against the DDJ-SX3 the differences are physical and they matter for a bag. The DDJ-SZ2 has four sets of CD/LINE inputs plus two sets of phono, where the SX3 has two line and two line or phono. The SZ2 has two microphone inputs and the SX3 has three. The SZ2 takes AC mains directly at 30 W and the SX3 runs from a DC 5 V adapter. The SZ2 weighs 10.7 kg against 6.1 kg and is 870 mm wide against 664 mm. And on macOS 26 Tahoe, Serato list the SX3 as supported and the SZ2 as currently unsupported.

Is it discontinued?

Pioneer DJ serve the product page from an /archive/ path. No maker page found carries the words discontinued or no longer available, and a forum assertion that the unit is "officially no longer supported" is not confirmed by any maker source.
