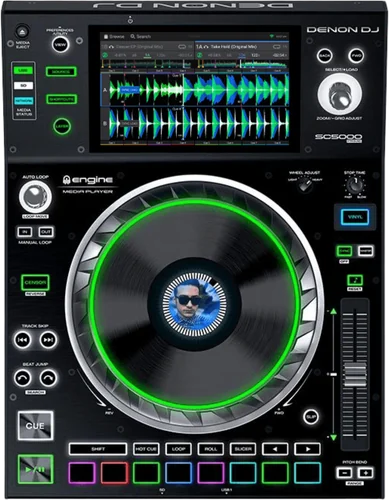

SC5000 PRIME, the field manual

The five things on the SC5000 PRIME that change what happens next, if you are reading this in the booth. All five are explained in full further down this page.

Short answer. The SC5000 PRIME is refusing a file system before it is refusing a drive. It reads exFAT, which Denon mark as recommended, and FAT32, and that is the whole list in both of the documents that cover it.

Why this happens, and why it can catch you out in a booth that has newer decks in it. The shared v5.0.0 guide lists the supported file systems as "exFAT (recommended), FAT32, HFS+ (SC6000/SC6000M PRIME only)". HFS+ is excluded from the SC5000 and SC5000M by name, in the same line that grants it to the SC6000 pair. So a Mac-formatted drive can read perfectly on the SC6000 at the other end of the booth and show nothing here, on the same network, in the same set. A drive formatted on a Windows machine without a second thought is often NTFS, which is not on the list either.

Fix it now. Move the drive to another of the three USB ports, or to the SD card slot, before you assume the drive is at fault. If the format is wrong, reformat to exFAT on another computer and copy the music back on. If there is no computer, borrow a drive that already reads on this deck rather than on the one beside it.

Avoid it next time. Format and test every drive on an SC5000 rather than on whatever Engine OS unit is nearest. The two generations do not read the same list, and only one of them tells you so.

Related: Which drives and formats it reads What each slot takes Start Emergency Mode

Short answer. The SC5000 PRIME has a documented reset, and it is the rear panel Power Button. Press and hold this button for 10 seconds to reset SC5000 PRIME.

Where the button is. Denon list it as item 2 in the rear panel section of the user guide, beside the power input, and it is the same button that switches the deck on and off. A short press switches the deck off, which is not what you want mid set. The ten seconds is the entire difference between the two actions, so hold it and count.

What Denon do not say. The guide gives the reset and does not give a list of what makes a deck stop responding in the first place. So this page does not offer a cause either. What it can give you is the documented way out and the order to try things in.

Fix it now. Reach round the back, hold the Power Button in for a full ten seconds, and let the deck restart. Only the deck you are holding restarts, so the other players, the mixer and the network stay up.

Before you pull the mains. Try the reset before the wall switch. Denon do build in a protection circuit to safely eject all media after an unexpected power loss to protect your data from corruption, after which reconnecting the power returns it to normal operation, so a sudden power cut is survivable, but on a rig where several PRIME units and the mixer share one power strip the wall switch is not a per deck option. It takes the whole booth down to recover one deck.

Avoid it next time. Find the Power Button during setup rather than during the problem. It is on the rear panel, out of sight, and on an installed deck it can sit behind a rack panel or a cable loom.

Related: Powering it up, and the order Denon insist on Three settings under Safety that look like a broken deck Start Emergency Mode

Short answer. The SC5000 PRIME has a printed procedure for this and a condition attached to it. Press Media Eject, then tap the Eject icon beside the device name on the touchscreen. Denon ask first that you "make sure none of its tracks are being played on any connected SC5000 PRIME units", and if a track on that device is playing you are asked whether to continue, which stops the track.

The condition is the part that gets skipped. Denon ask first that no track on that device is playing on any connected SC5000 PRIME. On a networked booth that is not the same as no track playing on the deck in front of you: a drive in this player can be feeding a track on another one, and the deck you are standing at will not look busy.

If the power goes instead. The deck carries a protection circuit to safely eject all media after an unexpected power loss to protect your data from corruption, after which reconnecting the power returns it to normal operation. That is the same problem solved for the case where nobody gets the chance to press anything, and it is a reason not to treat a power cut as a lost library.

Avoid it next time. Eject before you unplug, every time, including at the end of the set when the temptation to just pull it is strongest.

Related: What each slot takes Linking players together

Short answer. The SC5000 PRIME has three deliberate locks, all of them in the User Profile menu under Safety, and each one presents as a hardware fault to somebody who does not know it exists. None of them is a fault. All three are somebody's earlier choice on a deck you did not set up.

The screen ignores a tap on the track overview. Needle Lock, a setting under Profile and Safety that decides whether tapping the track overview jumps the playhead during playback. With it on you can still do it by pausing, or by putting the platter in Vinyl Mode, touching the top of the platter and then tapping.

A track will not load onto a deck that is playing. The deck has Lock Playing Deck, which when on requires the deck to be paused before a track can be loaded to it. So a load that does nothing on a running deck is this setting, not a dead Select/Load knob.

The pads and the mode buttons do nothing at all. The deck also has Pad Lock, which disables the pads and the Hot Cue, Loop, Roll and Slicer buttons. A pad section that is completely inert, with the rest of the deck working normally, is the one to suspect first.

Fix it now. All three live in the same place, so one trip answers all three. Open the User Profile menu, go to Safety, and read the three settings rather than changing them blind. On a house or rental deck, change back what you turn off, because the next person is expecting the deck as they left it.

Avoid it next time. Read the Safety page at soundcheck on any deck you did not set up yourself. It takes seconds and it removes three separate ways to lose time later, none of which announce themselves on the panel.

Related: The deck has stopped responding The screen, the platter and the platter display

Short answer. One SC5000 PRIME firmware build carries a printed dependency on a different piece of hardware. Denon put it in capitals at the top of the 1.0.2 release notes: "X1800 PRIME MUST BE UPDATED TO VERSION 1.1 IN ORDER TO USE THIS SC5000 BUILD."

Why this is worth knowing years later. Firmware dependencies between a player and a mixer are not visible from either unit. Nothing on the deck asks what the mixer is running, and nothing on the mixer asks what the players are running. The only place the requirement exists is a release note, and release notes are read once and then filed.

What to do about it. Treat the players and the mixer as one system when anything is updated, and update on a day when a broken booth costs nothing. Never on gig day. If you inherit an install where the players and the mixer are on very different vintages, that is worth an hour before a paid night rather than during one.

What we cannot tell you. Denon state the requirement for that specific build and do not publish a general compatibility matrix between player and mixer firmware. So this page reports the one documented dependency and does not extrapolate a rule from it.

Related: Updating from a drive Linking players together

Short answer. Whether the SC5000 PRIME has an internal drive bay is not something this page can tell you, because Denon's own documents do not agree. Two Denon documents disagree about whether this player has an internal drive bay. The shared v5.0.0 guide lists "Media inputs include: (3) USB, SD, and internal SATA drive bay" in the general feature list printed above its model-specific lists, and its SATA Drive Installation chapter is written for "your PRIME hardware" with no model named anywhere in it. The SC5000’s own v1.9 guide lists no internal bay in its Connections specification, and Denon’s SC5000 product page does not list one either. This page prints both rather than picking one.

Why the shared guide reads the way it does. That feature bullet sits in a general list printed above the two model-specific lists, so it is written for the document rather than for one deck in it. The SATA chapter is written the same way. Neither names a model, which is exactly why neither settles the question.

What to do before you buy a drive for one. Turn the deck over and look. The bay, where it exists on this range, is a panel in the centre of the bottom held by screws. That is a thirty second answer about the unit in front of you and it beats any document, including this one.

Why the page says this rather than picking a side. Guessing would be worth something only if the guess were right, and it would read exactly the same if it were wrong. A DJ who buys a drive on the strength of a sentence here and finds no bay to put it in has been let down by us, not by Denon.

Related: What each slot takes Which drives and formats it reads

Short answer. exFAT, which Denon mark as recommended, and FAT32. Both documents that cover this deck say so, and the shared one says what it does not read in the same breath.

The exclusion, in full. The shared v5.0.0 guide lists the supported file systems as "exFAT (recommended), FAT32, HFS+ (SC6000/SC6000M PRIME only)". HFS+ is excluded from the SC5000 and SC5000M by name, in the same line that grants it to the SC6000 pair.

Its own guide agrees, on its own. The v1.9 guide states it directly in its Devices and File Analysis section: "Supported file systems: exFAT (recommended), FAT32". Two documents, one of them model specific, is a stronger answer than either alone.

One small disagreement, and it changes nothing. The two documents do not mark the same one. Both model guides print "exFAT (recommended)" and then FAT32; Denon’s own SC5000M product page prints exFAT and then "FAT32 (recommended)". The pair of formats is not in dispute, only which one Denon are pointing at.

What it will play. AAC/M4A, AIF/AIFF, ALAC, FLAC, MP3, MP4, Ogg Vorbis and WAV, with AIF/AIFF and WAV documented at 44.1 to 192 kHz and 16 to 32 bit, and MP3 at 32 to 320 kbps.

What it will read from. SD, SDHC and SDXC cards, and USB mass storage devices, which Denon give as flash memory and external HDD enclosures.

Related: The USB drive will not mount What each slot takes exFAT and FAT32

Short answer. The SC5000 PRIME has three USB Type-A ports, one on the front and two on the rear, and an SD card slot, and the card slot takes SD, SDHC and SDXC cards.

The three USB ports are not equal. the rear ports supply 900 mA for USB 3.0 devices and 500 mA for USB 2.0, and the front port supplies 500 mA for USB 2.0 devices only. So a bus powered drive that behaves on the rear can misbehave on the front, and that is a specification rather than a fault. On a deck built into a rack the front port is often the only one you can reach, which is exactly when this matters.

Why it matters. A deck with one dead USB port is not a dead deck. There are two more ports and a card slot before anything is actually wrong.

Related: Which drives and formats it reads Taking a drive out safely The internal drive bay question

Short answer. You can network up to four players over the Link port, which then share track databases, timing and BPM information and other track data.

What the cable goes to. Denon describe the Link port as connecting to another SC5000 PRIME or to a Denon DJ mixer with the included networking cable.

Why it matters in a booth. One drive in one player can feed every player on the network, so the stick in your hand does not have to be in the deck you are playing. It also means a drive you are about to pull may be feeding somebody else, which is the condition on the eject procedure.

The pitch fader rule, and it looks like a fault. If Sync is activated, moving the pitch fader on the "primary" SC5000 PRIME unit will change the speed of all synced units, while moving the pitch fader on other units will do nothing. A pitch fader that moves and changes nothing is that rule rather than a broken fader.

The platter ring can report the mixer. The deck has an On Air Mode that changes the platter ring illumination with the channel fader on a Denon DJ mixer: with it on, raising the fader changes the ring from white to your chosen colour, and with it off your colour is shown whatever the fader is doing. Denon note it requires a connection to a compatible Denon DJ mixer over Ethernet.

Related: Taking a drive out safely A player update that needs the mixer updated first

Short answer. The SC5000 PRIME carries a 7 inch full colour LED backlit touchscreen, which Denon give as 178 mm on the diagonal and 152 by 91 mm across, an 8 inch metal platter, 203 mm across, which Denon describe as "metal construction with display and touch-capacitive circuitry", and a 2.2 inch full colour platter display, 56 mm across, in the centre of the jog.

The brake nobody finds in the dark. Wheel Adjust is a knob rather than a mode: "Turn this knob to set how resistant the platter is to adjustments. This knob applies a brake to the platter to prevent unintentional drifting due to environmental vibrations from bass frequencies, surface instability, etc." A platter that feels heavier or lighter than you expect on a deck you did not set up is that knob, and it is a real control with a real purpose in a room with bass in it.

Vinyl mode. The deck has a Vinyl button that turns a vinyl mode on and off. With it active, moving the platter scratches the track as you would with a record; with it deactivated, moving the platter temporarily adjusts the speed instead.

The brake time. There is also a Stop Time control for the rate at which the track slows to a complete stop, the brake time, when it is paused with Play/Pause.

The warning before a track ends. The deck has a Track End Warning setting for how long before the end of a track the deck warns you. On the selected layer the platter ring and the track overview flash; on the opposite layer the Layer button flashes instead.

Related: Three settings under Safety that look like a broken deck The two layers

Short answer. The SC5000 PRIME does dual layer playback with individual audio outputs, so the two layers reach the mixer on separate channels.

Why that is the point of the deck. Two players in one box, on separate channels, is how two of these become a four deck booth without a fourth unit or a second network cable.

What one set of controls means. One screen, one platter and one set of transport controls serve whichever layer has focus, so the Layer button decides what the hardware is driving. A control that appears to do the wrong thing is usually the right thing to the other layer.

Related: What comes out of the back Linking players together

Short answer. The SC5000 PRIME has wireless, and its own guide documents it in full: a Wi-Fi toggle in Settings with its own settings page, a Wi-Fi menu in the Control Center, and a Wi-Fi icon at the top of the Source screen. Denon document streaming and cloud services browsed over it, each of which asks you to sign in or activate the device before it will list anything.

Why this surprises people, including us. A player of this vintage is easy to assume is the offline one in a booth of newer gear. It is not. We assumed it and checked, and the guide answered plainly.

What that changes on a gig. A streaming service is an account and a network before it is a feature. Denon document that each service asks you to sign in or activate the device before it will list anything, which is not a thing to discover in front of a room. Venue Wi-Fi is also the least reliable component in most booths, and a set built on it has a dependency that a USB drive does not.

Do this. Carry the music on a drive whatever else you plan to do. Streaming is a way to reach for a track you do not have, not a way to carry the set you do have.

Related: Radio separation, and the warning Denon print What each slot takes

Format for the oldest deck in the booth. If the room has SC5000s and SC6000s in it, the SC5000 is the one with the shorter list, and a drive it will not read is a drive the whole booth cannot share. exFAT reads on both.

Read the Safety page at soundcheck. Three settings in there each look like broken hardware, and a deck you did not set up carries somebody else's answers.

Know where the Power Button is before you need it. It is on the rear panel and the documented reset is ten seconds on it. In a rack, find it while the lights are on.

Eject before you pull, and check the network first. A drive in this deck can be feeding a track on another one, and this deck will not look busy while it happens.

Never update on gig day. That is true everywhere on this site, and on this deck there is a documented case of a player build that needed a mixer update first.

Related: The pre-gig checklist Why gig day is a freeze

Short answer. The SC5000 PRIME carries two RCA output pairs, one per layer, two coaxial digital outputs at 24 bit and 96 kHz, a 3.5 mm mini TS remote start input, a USB Type-B port for a computer, one Ethernet Link port and an IEC power inlet.

Two output pairs, and that is the layers. One RCA pair per layer is what puts the two layers on separate mixer channels. A booth wired with one pair is a booth using half the deck.

The audio figures. Denon publish 2.0 Vrms analog output at 0 dBFS and 1 kHz, a 116 dB signal to noise ratio, distortion below 0.0015 percent and a 22 to 22,000 Hz frequency range, with the digital output at 96 kHz and 24 bit.

The physical facts. It measures 32.0 x 41.9 x 13.5 cm and weighs 3.99 kg, against the SC6000's 5.75 kg. It runs on IEC, 110 to 240 VAC at 50/60 Hz, and 75 W.

What is in the box. two stereo pairs of RCA audio cables, a USB cable, a USB extension cable, a networking cable, a power cable, a cleaning cloth, a software download card and the user guide.

Related: The two layers Powering it up, and the order Denon insist on

Short answer. The SC5000 PRIME has a printed power order and it is a prohibition rather than a suggestion. Power on SC5000 PRIME only after you have connected all of your input devices and before you power on your amplifiers and loudspeakers. Power off your amplifiers and loudspeakers before powering off SC5000 PRIME.

Why it is printed at all. Amplifiers and speakers powered before their source are what turn a startup thump into a blown driver. The order is about the room, not about the deck.

If it stops responding. There is a documented reset on the rear panel Power Button, and it has its own section: the deck has stopped responding.

Related: What comes out of the back Radio separation, and the warning Denon print

Short answer. From version 1.2.0 onward Denon document updating from a drive rather than a computer: copy the update img file to the root of a USB drive or SD card, insert it in USB port 1, hold VIEW for two seconds, open the UTILITY page, scroll to Update and tap REBOOT. Denon give the update as taking about two minutes.

Which firmware line this deck is on. Firmware here is Engine OS, one line for the whole PRIME range rather than a per model matrix, and both this deck and the SC5000M appear on Engine DJ's own compatible hardware list. The documented line is Engine DJ 5.0, point releases follow it, and the published notes stop there.

What the firmware notes for this deck actually record. The two release note documents in front of us cover 1.0.2 and 1.2.2. Between them they repair a player that could reset after hours of heavy scratching, drives that vanished from a remote player after a replug, larger databases that reported a corruption warning on source selection, a player that could reset while reading a corrupted database, and folders whose names ended in a space or a dot making the tracks inside them show as unavailable. That last one is worth reading twice if you name folders by hand.

And the dependency. The 1.0.2 notes carry a printed requirement on the mixer, which has its own section.

Never on gig day. An update is a thing you do on a day when a broken deck costs nothing.

Related: A player update that needs the mixer updated first Why gig day is a freeze

Short answer. The SC5000 PRIME has a transmitter in it, and Denon print a separation warning for it: "This is a mobile device. Maintain a distance of at least 8 inches / 20 centimeters of separation between the transmitter’s radiating structure(s) and your body or other people nearby."

What that means in a booth. Eight inches is roughly the distance between a deck and the front of a booth, so this is a real instruction rather than a legal footnote, and it is one more reason the deck belongs on the surface rather than pressed against you.

What Denon do not print for this model. Neither document in front of us carries an overheat warning or a ventilation instruction for the SC5000, the way the shared guide does for the newer pair. That is an absence in the documents, not a claim that the deck runs cool, and this page will not turn one into the other.

Related: Wi-Fi, streaming and the thing people assume this deck does not have Powering it up

Go to Denon DJ for the files themselves. We link their pages instead of hosting a copy, because a manual copied here is a snapshot of release day and theirs is the one that stays current.

What file systems does it read?

exFAT, which Denon mark as recommended, and FAT32. The shared guide that also covers the SC6000 grants HFS+ to that pair only, naming them, so a Mac-formatted drive is refused here.

Will a drive from my SC6000 work in it?

If the drive is exFAT or FAT32, yes. If it is HFS+, no, and that is documented rather than a fault.

What file formats does it play?

AAC/M4A, AIF/AIFF, ALAC, FLAC, MP3, MP4, Ogg Vorbis and WAV, with AIF/AIFF and WAV documented at 44.1 to 192 kHz and 16 to 32 bit, and MP3 at 32 to 320 kbps.

What can I put a library on?

It has three USB Type-A ports, one on the front and two on the rear, and an SD card slot.

Does it have an internal drive bay?

Denon's own documents disagree, so the honest answer is to look at the bottom panel of the unit in front of you. The drive bay section gives both documents.

How do I take a drive out?

Press Media Eject, then tap the Eject icon beside the device name on the touchscreen. Denon ask first that you "make sure none of its tracks are being played on any connected SC5000 PRIME units", and if a track on that device is playing you are asked whether to continue, which stops the track.

How do I reset a deck that has frozen?

Press and hold this button for 10 seconds to reset SC5000 PRIME. It is the rear panel Power Button.

How many players can I link?

You can network up to four players over the Link port, which then share track databases, timing and BPM information and other track data.

Why is the pitch fader doing nothing?

If Sync is activated, moving the pitch fader on the "primary" SC5000 PRIME unit will change the speed of all synced units, while moving the pitch fader on other units will do nothing.

Does it have Wi-Fi?

Yes. Its own guide documents a Wi-Fi menu, a Wi-Fi toggle in Settings and streaming and cloud services browsed over it.

Does it have a motorised platter?

No, that is the SC5000M. This deck has a 2.2 inch full colour platter display, 56 mm across, in the centre of the jog, a Vinyl button and a Wheel Adjust brake instead.

How is it different from the SC6000?

a 7 inch screen rather than 10.1, an 8 inch platter rather than 8.5, HFS+ excluded by name rather than supported, and 3.99 kg rather than 5.75. The SC6000's specification names a locking IEC connector and the SC5000's names a plain IEC inlet. The dual layer playback, the three USB ports, the SD slot, the four player Link network and the audio figures are the same on paper.
